12V DC All In One Touchscreen Computer Vesa Mount Rugged Touch Panel PC 1024x600

Name: 12V DC All In One Touchscreen Computer Vesa Mount Rugged Touch Panel PC 1024x600
Brand: WXYUAN
Price: 1 USD

Buy cheap 12V DC All In One Touchscreen Computer Vesa Mount Rugged Touch Panel PC 1024x600 product

Brand Name : WXYUAN

Place of Origin : Guangdong, China

Packaging Details : (bubble bag+soft pearl wool wrap) carton+plywood box
aluminium embedded terminal panel PC touch screen industrie computer fanless support Win7/10/11/XP Android Linux

Supply Ability : 3150 Piece/Pieces per Month

Price : negotiable

Model Number : SY150E-02

Certification : CE FCC ROHS

MOQ : 1 set

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Delivery Time : 7-22 days

Ports : 2 x USB 2.0, 2 x USB 3.0, 1 x HDMI, 1 x VGA, 1 x LAN

Wireless Connectivity : WiFi, Bluetooth

Power Supply : 12V DC

Operating System : Windows 10 IoT Enterprise

Mounting Options : VESA Mount, Panel Mount

Touch Screen Type : Capacitive

Resolution : 1024x600

Certifications : CE, FCC, RoHS

Contact Now

Rugged Embedded 15 Inch Panel PC All-In-One With Touchscreen With Celeron J6412 J4125 Fanless

LCD display panel specification:

Spec:15" Inch LED

LCD Ratio: 4:3

Display Area: 304.1x228.1 mm

Screen Resolution: 1024x768

Viewing Angle: 89/89/89/89

Brightness:300 nits

Contrast: 1000:1

Colour: 16.7M

Display Panel Details	display panel brand	LG,Samsung,AUO,Chimei,etc... original brand new & grade A+
Display Panel Details		Size	7 inch to 55 inch
Customize Frame Color	Black, white, green, pink, ivory, wine red, blue, violet, ......can be customized
body material	Durable aluminum frame & tempered glass to protect LCD panel against external impacts. front panel compliant NEMA / IP65 waterproof and dustproof standard,so that it can adapt to the harsh industrial site work environment, the most suitable for factory automation, machinery manufacturing, CNC equipment, textile equipment, communication networks, power automation and other industrial applications.
PC configuration	Chipset:	X86 board: Intel Celeron J4125, J6412, J1900, Core i3/i5/i7, etc... Single-board PC : RK3588 RK3399, RK3566,RK3568, etc...... as options
		Chipset Frequency:	Quad core upto 2.66Ghz
		Chipset integrated	Cortex-A17+GPU Mail-T764, and others as options etc...
		Ram:	2GB DDR3 SDRAM (16GB max)
		Flash Memory:	16GB/32GB high speed (optional)
		WiFi	802.11b/n/g Wifi Integated
PC configuration	Audio	Realtek HD ALC662 HD Line-In/Line-Out/Speaker out with 1W AMP Circuit
		Ethernet ports	Realtek RTL8111EL PCI-E Gigabit Ethernet LAN RJ45 port
		HDMI ports	Default *1 (options)
		COM ports	Default *2 COM (options)
		USB ports	Default 4 USB (3USB2.0; 1*USB3.0) (options)
		GPIO port	as option
Operation System:	Android, Linux, Ubuntu, Debian , Win7 Win10 Win11 Win XP OS etc...as options
Touch Screen	TouchScreen Type	10-Point capacitive touchscreen as options
		TouchScreen interface	Serial (RS232) or USB or COM as options
		Surface Hardness	Mohs' Number 7; Transmittance >75%
Power Supply	Input Voltage	DC12V or 24V
Power Supply		Output Rating	≦15W
Environmental	Work Temperature	-20 ~ 60°C (-4~140°F)
		Storage Temperature	-30 ~ 80°C (-22 ~ 176°F)
		Relative humidity	5~95% (Non condensation)
		Shake: SSD applied	1.5 Grms, IEC 60068-2-64, random, 5 ~ 500 Hz, 1 hr/axis
		Shock: SSD applied	10 G, IEC 60068-2-64, Half-sine wave, 11ms duration
		EMC	CE/FCC Class A
		Water-proof	Front surface IP65 protection grade

Features.

Our industrial panel PC are fully-integrated‚ waterproof and dustproof that combine high-performance different touch screen technologies in industrial-grade TFT-LCD flat panels, with sleek, IP65 / NEMA 4-4 x Ingress rating flat front surface industrial design.
Our industrial PC provide reliability, durability, and long expected product life. Impervious to environmental conditions such as liquid spills, splashes and wash-downs, these screens are the most contamination-resistant units available in the market. Our industrial IP65/ NEMA 4 touch computer are designed for process control, food processing equipment, machine control, human interface, automation equipment and in-vehicle use applications. Our panel PC have 7 inches to 65 inches

Specialties.

1. Long lasting product cycle for continuity thru all phases of project rollouts and servicing
2. Exceptional quality and highly engineered industrial monitors
3. Delivers drift-free operation with lifetime of more than 35 million finger touches like resistive, IR, SAW, Scap, Pcap, etc
4. All steel construction designed for harsh and industrial environments
5. Robust design with aluminum NEMA 4/ IP65 front panel or fully steel enclosed chassis
6. Meets NEMA 4/4x/12 and IP65 standards
7. Multiple mounting options (75*100mm VESA mount and clamps mounting)
8. Accuracy in high-use applications
9. Supports Windows 7 Win10 Win11 Win XP, Linux OS, Android, Mac OS, Ubuntu, Debian
10. CE, FCC, RoHS, ISO9001:2008 compliance.
11. VGA, DVI, HDMI, AV, S-Video, BNC multiple inputs/outputs optional
12. Wide operating temperature from -30 to 80 degrees optional and supports 7/24 running

12V DC All In One Touchscreen Computer Vesa Mount Rugged Touch Panel PC 1024x600

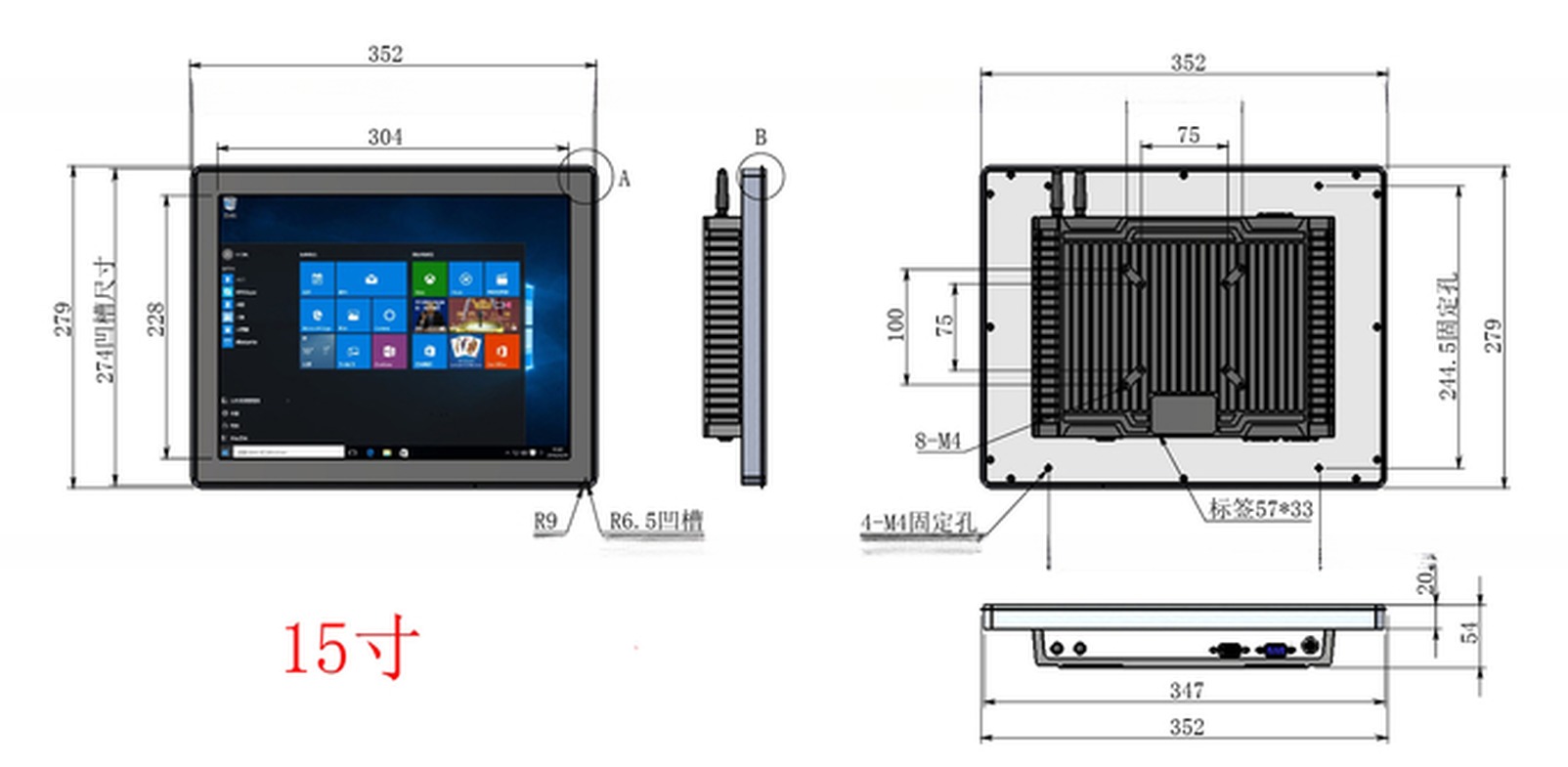

15" inch Size Drawing 12V DC All In One Touchscreen Computer Vesa Mount Rugged Touch Panel PC 1024x600
